Name: Cheap price good quality YF-Y semi-automatic bobbin wind cone winding machine
Brand: Cheap price good quality YF-Y semi-automatic bobbin wind cone winding machine
SKU: YF-Y
Rating: 4.5 (147 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Condition: New

Application: cone winding machine

Automatic Grade: Semi-automatic

Model Number: YF-Y

Voltage: 380/220V

Power: 1080W

Dimension(L*W*H): 2.08L X 0.70W X 1.05H

Weight: 500KG

Warranty: 1 year

Spindle No.s: 6 spindles

Winding speed: 200-300Meter/min

Packing size: 2.17L x 0.80W x 1.10H

Informazioni di base

Model Number: YF-Y

Termini di pagamento e spedizione

Packaging Details: wooden box packing

Supply Ability: 80 Set/Sets per Month YF-Y Cop cone winding machine

Descrizione di prodotto

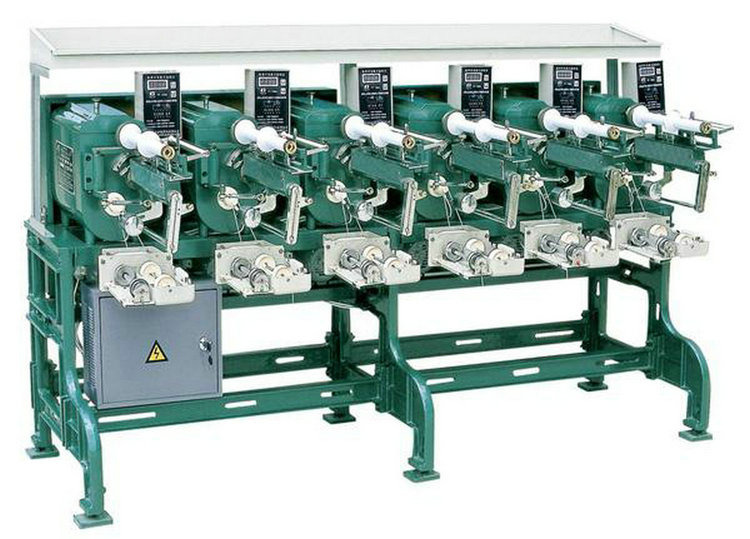

YF-Y Embroidery thread Winding machine is horn type and applicable for winding different materials such as Nylon, Rayon, Embroidery Thread and Fishing Line. It features as the fine effect, easy operation, safety and reliability. Suitable size of cone: from 2inch (50mm) to 6inch (150mm), according to customer’s needs.
Function features: It is equipped with the new generation computer measuring apparatus. It is equipped with the thread break auto-stop device. It is equipped with the electron tension and silicone oiling device. It is equipped with the disconnecting automatic memory function.
Can add and assemble putting(to be special order from the consumers) hopper and belt housing.
Product specifications and design subject to change without notice.

H size	2"	3"	4"	6"
No of spindles	6 Ding	6 Ding	6 Ding	6 Ding
Cone for each spindle	2	2	2	1
Thread Length	0-1000(M)	0-1500(M)	0-10000(M)	1000g
Motor	380V/220V 50Hz 180W X 6
Machinevolume	2.08ML × 0.70MW × 1.05MH/2.08ML × 0.80MW × 1.05MH
Weight of the Machine	400Kg
Measurement	2.35(or2.17)ML × 0.80MW × 1.25MH/2.35(or2.17) ML × 0.90MW × 1.25MH
Weight	500Kg
